交易和指令

在 Solana 上，用户通过发送交易与网络交互。交易包含一个或多个指令，这些指令指定需要处理的操作。指令的执行逻辑存储在部署到 Solana 网络上的程序中，每个程序定义其自己的指令集。

以下是关于 Solana 交易处理的关键细节：

如果一个交易包含多个指令，这些指令会按照添加到交易中的顺序依次执行。
交易是“原子性”的——所有指令必须成功处理，否则整个交易失败且不会发生任何更改。

交易本质上是一个处理一个或多个指令的请求。

交易简化图

交易就像一个装有表格的信封。每个表格都是一条指令，告诉网络需要执行的操作。发送交易就像邮寄信封以处理这些表格。

关键点

Solana 交易包含调用网络上程序的指令。
交易具有原子性——如果任何指令失败，整个交易失败且不会发生任何更改。
交易中的指令按顺序依次执行。
交易的大小限制为 1232 字节。
每条指令需要以下三部分信息：
1. 要调用的程序地址
2. 指令读取或写入的账户
3. 指令所需的额外数据（例如函数参数）

SOL 转账示例

下图表示一笔包含单个指令的交易，用于将 SOL 从发送方转移到接收方。

在 Solana 上，“钱包”是由系统程序拥有的账户。只有程序所有者可以更改账户的数据，因此转移 SOL 需要发送一笔交易以调用系统程序。

SOL 转账

发送方账户必须签署 (is_signer) 交易，以允许系统程序扣除其 lamport 余额。由于 lamport 余额会发生变化，发送方和接收方账户必须是可写的 (is_writable)。

发送交易后，系统程序会处理转账指令。然后，系统程序会更新发送方和接收方账户的 lamport 余额。

SOL 转账流程

以下示例展示了如何发送一笔交易，将 SOL 从一个账户转移到另一个账户。

import {
  airdropFactory,
  appendTransactionMessageInstructions,
  createSolanaRpc,
  createSolanaRpcSubscriptions,
  createTransactionMessage,
  generateKeyPairSigner,
  getSignatureFromTransaction,
  lamports,
  pipe,
  sendAndConfirmTransactionFactory,
  setTransactionMessageFeePayerSigner,
  setTransactionMessageLifetimeUsingBlockhash,
  signTransactionMessageWithSigners
} from "@solana/kit";
import { getTransferSolInstruction } from "@solana-program/system";

// Create a connection to cluster
const rpc = createSolanaRpc("http://localhost:8899");
const rpcSubscriptions = createSolanaRpcSubscriptions("ws://localhost:8900");

// Generate sender and recipient keypairs
const sender = await generateKeyPairSigner();
const recipient = await generateKeyPairSigner();

const LAMPORTS_PER_SOL = 1_000_000_000n;
const transferAmount = lamports(LAMPORTS_PER_SOL / 100n); // 0.01 SOL

// Fund sender with airdrop
await airdropFactory({ rpc, rpcSubscriptions })({
  recipientAddress: sender.address,
  lamports: lamports(LAMPORTS_PER_SOL), // 1 SOL
  commitment: "confirmed"
});

// Check balance before transfer
const { value: preBalance1 } = await rpc.getBalance(sender.address).send();
const { value: preBalance2 } = await rpc.getBalance(recipient.address).send();

// Create a transfer instruction for transferring SOL from sender to recipient
const transferInstruction = getTransferSolInstruction({
  source: sender,
  destination: recipient.address,
  amount: transferAmount // 0.01 SOL in lamports
});

// Add the transfer instruction to a new transaction
const { value: latestBlockhash } = await rpc.getLatestBlockhash().send();
const transactionMessage = pipe(
  createTransactionMessage({ version: 0 }),
  (tx) => setTransactionMessageFeePayerSigner(sender, tx),
  (tx) => setTransactionMessageLifetimeUsingBlockhash(latestBlockhash, tx),
  (tx) => appendTransactionMessageInstructions([transferInstruction], tx)
);

// Send the transaction to the network
const signedTransaction =
  await signTransactionMessageWithSigners(transactionMessage);
await sendAndConfirmTransactionFactory({ rpc, rpcSubscriptions })(
  signedTransaction,
  { commitment: "confirmed" }
);
const transactionSignature = getSignatureFromTransaction(signedTransaction);

// Check balance after transfer
const { value: postBalance1 } = await rpc.getBalance(sender.address).send();
const { value: postBalance2 } = await rpc.getBalance(recipient.address).send();

console.log(
  "Sender prebalance:",
  Number(preBalance1) / Number(LAMPORTS_PER_SOL)
);
console.log(
  "Recipient prebalance:",
  Number(preBalance2) / Number(LAMPORTS_PER_SOL)
);
console.log(
  "Sender postbalance:",
  Number(postBalance1) / Number(LAMPORTS_PER_SOL)
);
console.log(
  "Recipient postbalance:",
  Number(postBalance2) / Number(LAMPORTS_PER_SOL)
);
console.log("Transaction Signature:", transactionSignature);

ConsolePowered by Mirror

Click to execute the code.

import {
  airdropFactory,
  appendTransactionMessageInstructions,
  createSolanaRpc,
  createSolanaRpcSubscriptions,
  createTransactionMessage,
  generateKeyPairSigner,
  getSignatureFromTransaction,
  lamports,
  pipe,
  sendAndConfirmTransactionFactory,
  setTransactionMessageFeePayerSigner,
  setTransactionMessageLifetimeUsingBlockhash,
  signTransactionMessageWithSigners
} from "@solana/kit";
import { getTransferSolInstruction } from "@solana-program/system";

// Create a connection to cluster
const rpc = createSolanaRpc("http://localhost:8899");
const rpcSubscriptions = createSolanaRpcSubscriptions("ws://localhost:8900");

// Generate sender and recipient keypairs
const sender = await generateKeyPairSigner();
const recipient = await generateKeyPairSigner();

const LAMPORTS_PER_SOL = 1_000_000_000n;
const transferAmount = lamports(LAMPORTS_PER_SOL / 100n); // 0.01 SOL

// Fund sender with airdrop
await airdropFactory({ rpc, rpcSubscriptions })({
  recipientAddress: sender.address,
  lamports: lamports(LAMPORTS_PER_SOL), // 1 SOL
  commitment: "confirmed"
});

// Check balance before transfer
const { value: preBalance1 } = await rpc.getBalance(sender.address).send();
const { value: preBalance2 } = await rpc.getBalance(recipient.address).send();

// Create a transfer instruction for transferring SOL from sender to recipient
const transferInstruction = getTransferSolInstruction({
  source: sender,
  destination: recipient.address,
  amount: transferAmount // 0.01 SOL in lamports
});

// Add the transfer instruction to a new transaction
const { value: latestBlockhash } = await rpc.getLatestBlockhash().send();
const transactionMessage = pipe(
  createTransactionMessage({ version: 0 }),
  (tx) => setTransactionMessageFeePayerSigner(sender, tx),
  (tx) => setTransactionMessageLifetimeUsingBlockhash(latestBlockhash, tx),
  (tx) => appendTransactionMessageInstructions([transferInstruction], tx)
);

// Send the transaction to the network
const signedTransaction =
  await signTransactionMessageWithSigners(transactionMessage);
await sendAndConfirmTransactionFactory({ rpc, rpcSubscriptions })(
  signedTransaction,
  { commitment: "confirmed" }
);
const transactionSignature = getSignatureFromTransaction(signedTransaction);

// Check balance after transfer
const { value: postBalance1 } = await rpc.getBalance(sender.address).send();
const { value: postBalance2 } = await rpc.getBalance(recipient.address).send();

console.log(
  "Sender prebalance:",
  Number(preBalance1) / Number(LAMPORTS_PER_SOL)
);
console.log(
  "Recipient prebalance:",
  Number(preBalance2) / Number(LAMPORTS_PER_SOL)
);
console.log(
  "Sender postbalance:",
  Number(postBalance1) / Number(LAMPORTS_PER_SOL)
);
console.log(
  "Recipient postbalance:",
  Number(postBalance2) / Number(LAMPORTS_PER_SOL)
);
console.log("Transaction Signature:", transactionSignature);

ConsolePowered by Mirror

Click to execute the code.

Output

No output yet

客户端库通常会抽象构建程序指令的细节。如果没有可用的库，您可以手动构建指令。这需要您了解指令的实现细节。

以下示例展示了如何手动构建转账指令。Expanded Instruction 标签与 Instruction 标签在功能上是等效的。

const transferAmount = 0.01; // 0.01 SOL

const transferInstruction = getTransferSolInstruction({
  source: sender,
  destination: recipient.address,
  amount: transferAmount * LAMPORTS_PER_SOL
});

Legacy

const transferAmount = 0.01; // 0.01 SOL

const transferInstruction = SystemProgram.transfer({
  fromPubkey: sender.publicKey,
  toPubkey: receiver.publicKey,
  lamports: transferAmount * LAMPORTS_PER_SOL
});

Rust

let transfer_amount = LAMPORTS_PER_SOL / 100; // 0.01 SOL

let transfer_instruction =
    system_instruction::transfer(&sender.pubkey(), &recipient.pubkey(), transfer_amount);

在以下部分中，我们将详细介绍交易和指令的细节。

指令

在 Solana 程序上的一个指令可以被视为一个公共函数，任何人都可以通过 Solana 网络调用它。

调用程序的指令需要以下三个关键信息：

程序 ID：包含指令执行逻辑的程序
账户：指令所需的账户列表
指令数据：字节数组，指定要在程序上调用的指令以及指令所需的任何参数

Instruction

pub struct Instruction {
    /// Pubkey of the program that executes this instruction.
    pub program_id: Pubkey,
    /// Metadata describing accounts that should be passed to the program.
    pub accounts: Vec<AccountMeta>,
    /// Opaque data passed to the program for its own interpretation.
    pub data: Vec<u8>,
}

交易指令

AccountMeta

指令所需的每个账户必须作为一个AccountMeta提供，其中包含：

pubkey：账户地址
is_signer：账户是否必须签署交易
is_writable：指令是否修改账户数据

AccountMeta

pub struct AccountMeta {
    /// An account's public key.
    pub pubkey: Pubkey,
    /// True if an `Instruction` requires a `Transaction` signature matching `pubkey`.
    pub is_signer: bool,
    /// True if the account data or metadata may be mutated during program execution.
    pub is_writable: bool,
}

AccountMeta

通过预先指定指令读取或写入的账户，不修改相同账户的交易可以并行执行。

示例指令结构

运行以下示例以查看 SOL 转账指令的结构。

import { generateKeyPairSigner, lamports } from "@solana/kit";
import { getTransferSolInstruction } from "@solana-program/system";

// Generate sender and recipient keypairs
const sender = await generateKeyPairSigner();
const recipient = await generateKeyPairSigner();

// Define the amount to transfer
const LAMPORTS_PER_SOL = 1_000_000_000n;
const transferAmount = lamports(LAMPORTS_PER_SOL / 100n); // 0.01 SOL

// Create a transfer instruction for transferring SOL from sender to recipient
const transferInstruction = getTransferSolInstruction({
  source: sender,
  destination: recipient.address,
  amount: transferAmount
});

console.log(JSON.stringify(transferInstruction, null, 2));

ConsolePowered by Mirror

Click to execute the code.

import { generateKeyPairSigner, lamports } from "@solana/kit";
import { getTransferSolInstruction } from "@solana-program/system";

// Generate sender and recipient keypairs
const sender = await generateKeyPairSigner();
const recipient = await generateKeyPairSigner();

// Define the amount to transfer
const LAMPORTS_PER_SOL = 1_000_000_000n;
const transferAmount = lamports(LAMPORTS_PER_SOL / 100n); // 0.01 SOL

// Create a transfer instruction for transferring SOL from sender to recipient
const transferInstruction = getTransferSolInstruction({
  source: sender,
  destination: recipient.address,
  amount: transferAmount
});

console.log(JSON.stringify(transferInstruction, null, 2));

ConsolePowered by Mirror

Click to execute the code.

Output

No output yet

以下示例显示了前面代码片段的输出。具体格式因 SDK 而异，但每个 Solana 指令都需要以下信息：

程序 ID：将执行指令的程序地址。
账户：指令所需的账户列表。对于每个账户，指令必须指定其地址、是否需要签署交易以及是否会被写入。
数据：一个字节缓冲区，用于告诉程序要执行的指令，并包含指令所需的任何参数。

{
  "accounts": [
    {
      "address": "Hu28vRMGWpQXN56eaE7jRiDDRRz3vCXEs7EKHRfL6bC",
      "role": 3,
      "signer": {
        "address": "Hu28vRMGWpQXN56eaE7jRiDDRRz3vCXEs7EKHRfL6bC",
        "keyPair": {
          "privateKey": {},
          "publicKey": {}
        }
      }
    },
    {
      "address": "2mBY6CTgeyJNJDzo6d2Umipw2aGUquUA7hLdFttNEj7p",
      "role": 1
    }
  ],
  "programAddress": "11111111111111111111111111111111",
  "data": {
    "0": 2,
    "1": 0,
    "2": 0,
    "3": 0,
    "4": 128,
    "5": 150,
    "6": 152,
    "7": 0,
    "8": 0,
    "9": 0,
    "10": 0,
    "11": 0
  }
}

交易

一个 Solana 交易包括：

签名：交易中包含的签名数组。
消息：需要原子处理的指令列表。

Transaction

pub struct Transaction {
    #[wasm_bindgen(skip)]
    #[serde(with = "short_vec")]
    pub signatures: Vec<Signature>,

    #[wasm_bindgen(skip)]
    pub message: Message,
}

交易格式

交易消息的结构包括：

消息头：指定签名者和只读账户的数量。

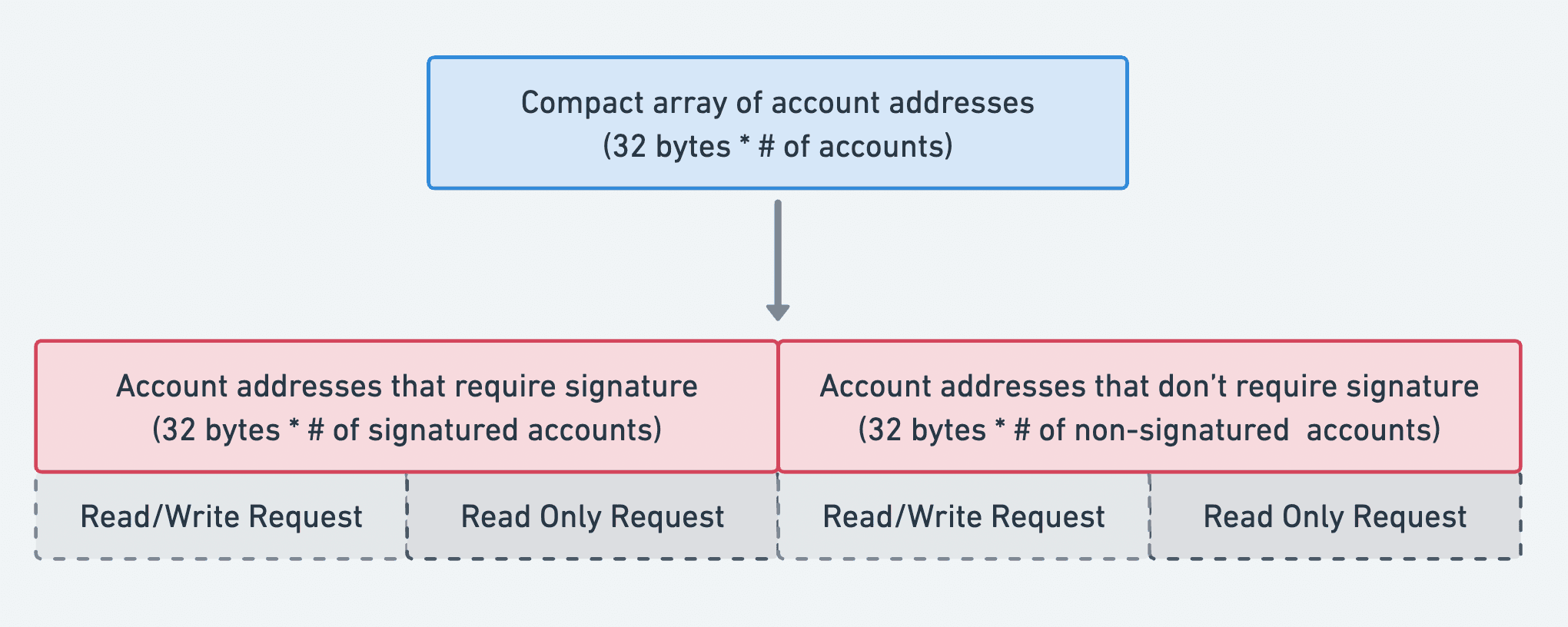

账户地址：交易指令所需的账户地址数组。
最近区块哈希：作为交易的时间戳。
指令：要执行的指令数组。

Message

pub struct Message {
    /// The message header, identifying signed and read-only `account_keys`.
    pub header: MessageHeader,

    /// All the account keys used by this transaction.
    #[serde(with = "short_vec")]
    pub account_keys: Vec<Pubkey>,

    /// The id of a recent ledger entry.
    pub recent_blockhash: Hash,

    /// Programs that will be executed in sequence and committed in
    /// one atomic transaction if all succeed.
    #[serde(with = "short_vec")]
    pub instructions: Vec<CompiledInstruction>,
}

交易消息

交易大小

Solana 交易的大小限制为 1232 字节。此限制来源于 IPv6 最大传输单元 (MTU) 的大小 1280 字节，减去网络头的 48 字节（40 字节 IPv6 + 8 字节分片头）。

交易的总大小（签名和消息）必须保持在此限制之内，包括：

签名：每个 64 字节
消息：头部（3 字节）、账户密钥（每个 32 字节）、最近区块哈希（32 字节）和指令

交易格式

消息头

消息头使用三个字节定义账户权限。

必需的签名
只读签名账户的数量
只读未签名账户的数量

MessageHeader

pub struct MessageHeader {
    /// The number of signatures required for this message to be considered
    /// valid. The signers of those signatures must match the first
    /// `num_required_signatures` of [`Message::account_keys`].
    pub num_required_signatures: u8,

    /// The last `num_readonly_signed_accounts` of the signed keys are read-only
    /// accounts.
    pub num_readonly_signed_accounts: u8,

    /// The last `num_readonly_unsigned_accounts` of the unsigned keys are
    /// read-only accounts.
    pub num_readonly_unsigned_accounts: u8,
}

消息头

紧凑数组格式

交易消息中的紧凑数组是以下列格式序列化的数组：

数组长度（编码为 compact-u16）
数组项依次列出

紧凑数组格式

此格式用于对交易消息中的账户地址数组和指令数组的长度进行编码。

账户地址数组

交易消息包含一个账户地址数组，该数组是指令所需的。数组以一个 compact-u16数字开头，表示包含的地址数量。然后根据消息头确定的权限对地址进行排序：

可写且为签名者的账户
只读且为签名者的账户
可写但不是签名者的账户
只读且不是签名者的账户

账户地址的紧凑数组

指令数组

交易消息包含一个指令数组，其类型为 CompiledInstruction。指令在添加到交易时会转换为此类型。

与消息中的账户地址数组类似，它以一个 compact-u16长度开头，后跟指令数据。每个指令包含：

程序 ID 索引：一个 u8 索引，指向账户地址数组中程序的地址。这指定了将处理指令的程序。
账户索引：一个 u8 索引数组，指向此指令所需的账户地址。
指令数据：一个字节数组，指定要在程序上调用的指令以及指令所需的任何附加数据（例如函数参数）。

CompiledInstruction

pub struct CompiledInstruction {
    /// Index into the transaction keys array indicating the program account that executes this instruction.
    pub program_id_index: u8,
    /// Ordered indices into the transaction keys array indicating which accounts to pass to the program.
    #[serde(with = "short_vec")]
    pub accounts: Vec<u8>,
    /// The program input data.
    #[serde(with = "short_vec")]
    pub data: Vec<u8>,
}

指令的紧凑数组

示例交易结构

运行以下示例以查看包含单个 SOL 转账指令的交易结构。

import {
  createSolanaRpc,
  generateKeyPairSigner,
  lamports,
  createTransactionMessage,
  setTransactionMessageFeePayerSigner,
  setTransactionMessageLifetimeUsingBlockhash,
  appendTransactionMessageInstructions,
  pipe,
  signTransactionMessageWithSigners,
  getCompiledTransactionMessageDecoder
} from "@solana/kit";
import { getTransferSolInstruction } from "@solana-program/system";

const rpc = createSolanaRpc("http://localhost:8899");
const { value: latestBlockhash } = await rpc.getLatestBlockhash().send();

// Generate sender and recipient keypairs
const sender = await generateKeyPairSigner();
const recipient = await generateKeyPairSigner();

// Define the amount to transfer
const LAMPORTS_PER_SOL = 1_000_000_000n;
const transferAmount = lamports(LAMPORTS_PER_SOL / 100n); // 0.01 SOL

// Create a transfer instruction for transferring SOL from sender to recipient
const transferInstruction = getTransferSolInstruction({
  source: sender,
  destination: recipient.address,
  amount: transferAmount
});

// Create transaction message
const transactionMessage = pipe(
  createTransactionMessage({ version: 0 }),
  (tx) => setTransactionMessageFeePayerSigner(sender, tx),
  (tx) => setTransactionMessageLifetimeUsingBlockhash(latestBlockhash, tx),
  (tx) => appendTransactionMessageInstructions([transferInstruction], tx)
);

const signedTransaction =
  await signTransactionMessageWithSigners(transactionMessage);

// Decode the messageBytes
const compiledTransactionMessage =
  getCompiledTransactionMessageDecoder().decode(signedTransaction.messageBytes);

console.log(JSON.stringify(compiledTransactionMessage, null, 2));

ConsolePowered by Mirror

Click to execute the code.

import {
  createSolanaRpc,
  generateKeyPairSigner,
  lamports,
  createTransactionMessage,
  setTransactionMessageFeePayerSigner,
  setTransactionMessageLifetimeUsingBlockhash,
  appendTransactionMessageInstructions,
  pipe,
  signTransactionMessageWithSigners,
  getCompiledTransactionMessageDecoder
} from "@solana/kit";
import { getTransferSolInstruction } from "@solana-program/system";

const rpc = createSolanaRpc("http://localhost:8899");
const { value: latestBlockhash } = await rpc.getLatestBlockhash().send();

// Generate sender and recipient keypairs
const sender = await generateKeyPairSigner();
const recipient = await generateKeyPairSigner();

// Define the amount to transfer
const LAMPORTS_PER_SOL = 1_000_000_000n;
const transferAmount = lamports(LAMPORTS_PER_SOL / 100n); // 0.01 SOL

// Create a transfer instruction for transferring SOL from sender to recipient
const transferInstruction = getTransferSolInstruction({
  source: sender,
  destination: recipient.address,
  amount: transferAmount
});

// Create transaction message
const transactionMessage = pipe(
  createTransactionMessage({ version: 0 }),
  (tx) => setTransactionMessageFeePayerSigner(sender, tx),
  (tx) => setTransactionMessageLifetimeUsingBlockhash(latestBlockhash, tx),
  (tx) => appendTransactionMessageInstructions([transferInstruction], tx)
);

const signedTransaction =
  await signTransactionMessageWithSigners(transactionMessage);

// Decode the messageBytes
const compiledTransactionMessage =
  getCompiledTransactionMessageDecoder().decode(signedTransaction.messageBytes);

console.log(JSON.stringify(compiledTransactionMessage, null, 2));

ConsolePowered by Mirror

Click to execute the code.

Output

No output yet

以下示例展示了从前面的代码片段中获取的交易消息输出。具体格式因 SDK 而异，但包含相同的信息。

{
  "version": 0,
  "header": {
    "numSignerAccounts": 1,
    "numReadonlySignerAccounts": 0,
    "numReadonlyNonSignerAccounts": 1
  },
  "staticAccounts": [
    "HoCy8p5xxDDYTYWEbQZasEjVNM5rxvidx8AfyqA4ywBa",
    "5T388jBjovy7d8mQ3emHxMDTbUF8b7nWvAnSiP3EAdFL",
    "11111111111111111111111111111111"
  ],
  "lifetimeToken": "EGCWPUEXhqHJWYBfDirq3mHZb4qDpATmYqBZMBy9TBC1",
  "instructions": [
    {
      "programAddressIndex": 2,
      "accountIndices": [0, 1],
      "data": {
        "0": 2,
        "1": 0,
        "2": 0,
        "3": 0,
        "4": 128,
        "5": 150,
        "6": 152,
        "7": 0,
        "8": 0,
        "9": 0,
        "10": 0,
        "11": 0
      }
    }
  ]
}

当您在将交易发送到网络后使用其签名获取交易时，您将收到包含以下结构的响应。

message 字段包含以下字段：

header：指定 accountKeys 数组中地址的读/写和签名者权限
accountKeys：交易指令中使用的所有账户地址的数组
recentBlockhash：用于为交易加时间戳的区块哈希
instructions：要执行的指令数组。每个指令中的 account 和 programIdIndex 引用 accountKeys 数组中的索引。
signatures：包含所有指令所需签名者账户签名的数组。签名是通过使用账户对应的私钥对交易消息进行签名生成的。

Transaction Data

{
  "blockTime": 1745196488,
  "meta": {
    "computeUnitsConsumed": 150,
    "err": null,
    "fee": 5000,
    "innerInstructions": [],
    "loadedAddresses": {
      "readonly": [],
      "writable": []
    },
    "logMessages": [
      "Program 11111111111111111111111111111111 invoke [1]",
      "Program 11111111111111111111111111111111 success"
    ],
    "postBalances": [989995000, 10000000, 1],
    "postTokenBalances": [],
    "preBalances": [1000000000, 0, 1],
    "preTokenBalances": [],
    "rewards": [],
    "status": {
      "Ok": null
    }
  },
  "slot": 13049,
  "transaction": {
    "message": {
      "header": {
        "numReadonlySignedAccounts": 0,
        "numReadonlyUnsignedAccounts": 1,
        "numRequiredSignatures": 1
      },
      "accountKeys": [
        "8PLdpLxkuv9Nt8w3XcGXvNa663LXDjSrSNon4EK7QSjQ",
        "7GLg7bqgLBv1HVWXKgWAm6YoPf1LoWnyWGABbgk487Ma",
        "11111111111111111111111111111111"
      ],
      "recentBlockhash": "7ZCxc2SDhzV2bYgEQqdxTpweYJkpwshVSDtXuY7uPtjf",
      "instructions": [
        {
          "accounts": [0, 1],
          "data": "3Bxs4NN8M2Yn4TLb",
          "programIdIndex": 2,
          "stackHeight": null
        }
      ],
      "indexToProgramIds": {}
    },
    "signatures": [
      "3jUKrQp1UGq5ih6FTDUUt2kkqUfoG2o4kY5T1DoVHK2tXXDLdxJSXzuJGY4JPoRivgbi45U2bc7LZfMa6C4R3szX"
    ]
  },
  "version": "legacy"
}

Table of Contents
